Product Details:
|
|
| Product Name: | 4 Leg Bridle Wire Rope Sling 16mm x 3m WLL 6.90T/4.93T with Master Link and Hooks |
|---|---|
| Brand: | LKS |
| Wire Rope Diameter: | 16mm steel wire rope |
| Leg Length: | 3m per leg, custom leg length available |
| Rated WLL: | 6.90T at 0°–45° to vertical and 4.93T at 45°–60° to vertical |
| Structure: | Four-leg bridle wire rope sling with top master link, four hooks, thimble eyes, swaged sleeves and metal tag |
|
Payment & Shipping Terms:
|
|
| Payment Terms: | T/T, bank transfer or negotiated terms for bulk and project orders |
| Sample Order: | Available for dimension checking, fitting confirmation and project approval |
| Lead Time: | Based on rope diameter, leg length, master link size, hook type, quantity, tag requirement and testing request |
| Packing Method: | Carton, pallet, wooden case, steel frame or customized export packing |
| Shipping Method: | Sea freight, air freight, express delivery or buyer-appointed freight forwarder |
| Documents: | Commercial invoice, packing list, product photos, inspection record and optional proof test report |
|
Detail Information |
|||
| Rated WLL by Angle | 6.90T at 0°–45° to vertical and 4.93T at 45°–60° to vertical | Reference Breaking Load | Minimum 16.45T / 161.3kN calculated from single-leg WLL 3.29T × safety factor 5 |
|---|---|---|---|
| Wire Rope Diameter | 16mm steel wire rope | Leg Length | 3m per leg, customized length available |
| Wire Rope Construction | 6x36WS IWRC 1960 N/mm², or customized construction on request | Surface Finish | Galvanized steel wire rope, bright steel wire rope or stainless steel wire rope available |
| End Fittings | Top master link, four hooks, thimble eyes, swaged sleeves and optional safety latches | Inspection Support | Visual inspection, dimension check, fitting confirmation, proof test option and documentation support available |
| High Light: |
4 leg bridle wire rope sling,bridle wire rope sling |
||
Product Description
LKS manufactures 4 Leg Bridle Wire Rope Sling 16mm x 3m WLL 6.90T/4.93T for industrial buyers who need a ready-to-use multi-leg lifting assembly with master link, hooks, thimble eyes, swaged sleeves, metal tag and clear working load information. |
The LKS 4 Leg Bridle Wire Rope Sling 16mm x 3m WLL 6.90T/4.93T is a specific four-leg wire rope bridle sling made from 16mm steel wire rope, with each leg designed around a 3m working length. The top master link connects the complete sling assembly to the crane hook, while the four hook ends connect to four lifting points on the load.

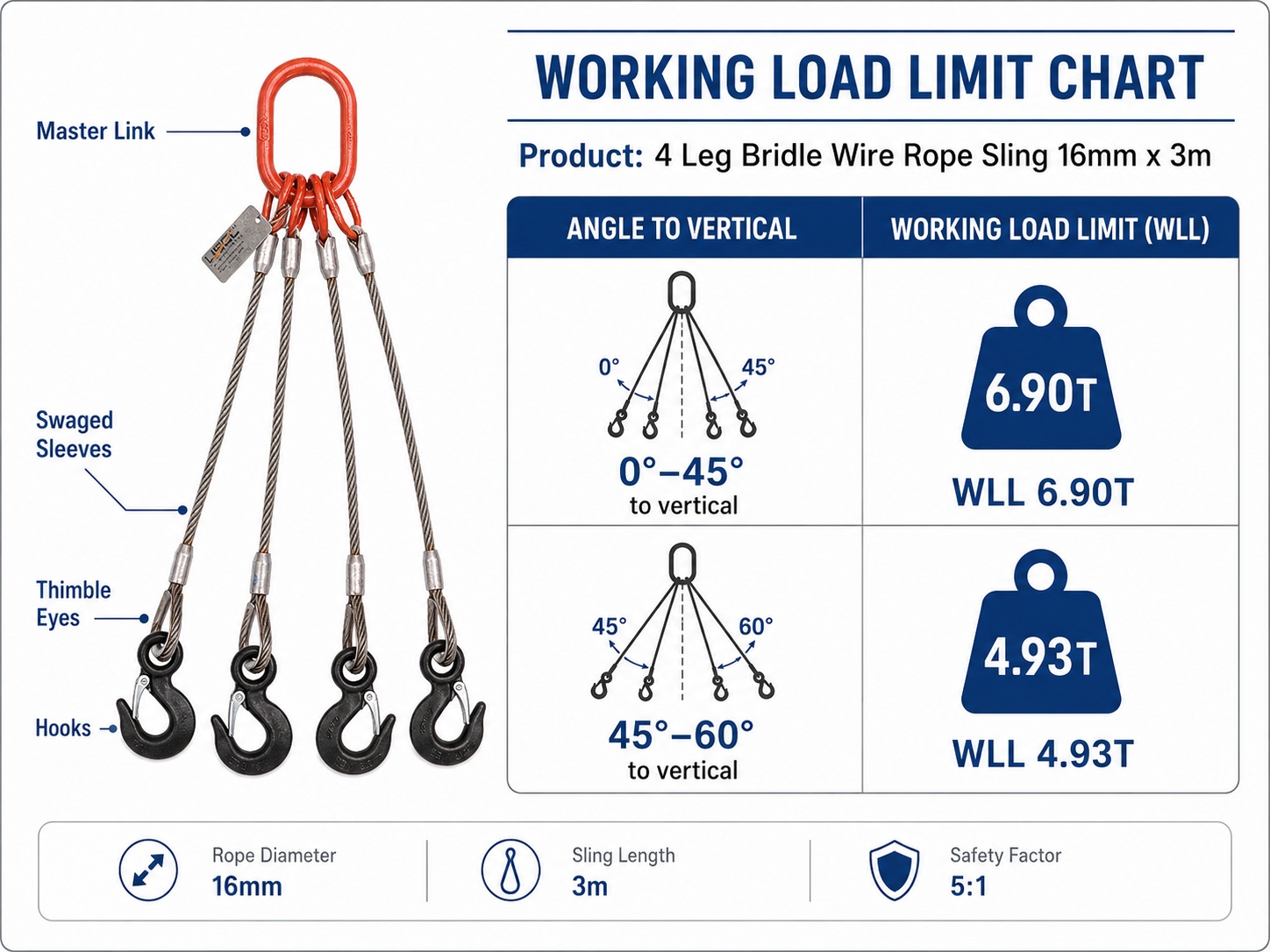

For this product, the working load limit is angle-based: WLL 6.90T at 0°–45° to vertical and WLL 4.93T at 45°–60° to vertical. This is important because a bridle wire rope sling does not carry the same rated load at every lifting angle. When sling legs move farther away from the vertical line, leg tension increases and the allowable working load decreases.
Load Rating Note: The WLL values on this page are based on four-leg direct lifting with symmetrical loading and angle measured from the vertical. Final tag marking, proof test requirement and certificate details should follow the confirmed order specification. |
The rated capacity of a bridle wire rope sling depends on sling angle, rope construction, tensile grade, end fittings and the number of effective load-bearing legs. For buyers, this means rope diameter alone is not enough for correct sling selection. Load weight, lifting point layout, lifting angle, master link size and hook compatibility should all be confirmed before quotation.
| Load Parameter | Value for This Product | Technical Meaning |
|---|---|---|
| Single-Leg Reference WLL | 3.29T | Reference WLL for one 16mm steel wire rope sling leg in vertical direct lifting |
| 4-Leg Bridle WLL at 0°–45° to Vertical | 6.90T | Recommended WLL range for normal symmetrical multi-leg lifting angle |
| 4-Leg Bridle WLL at 45°–60° to Vertical | 4.93T | Reduced WLL when sling angle becomes larger and leg tension increases |
| Reference Minimum Breaking Load | 16.45T / 161.3kN | Calculated from single-leg WLL 3.29T × safety factor 5; actual MBL should follow test certificate |
| Safety Factor | 5:1 reference | Common safety coefficient used for steel wire rope sling rating and specification |
| Angle Basis | Angle to vertical | 0° means vertical leg; 60° to vertical is normally treated as the practical upper angle range |

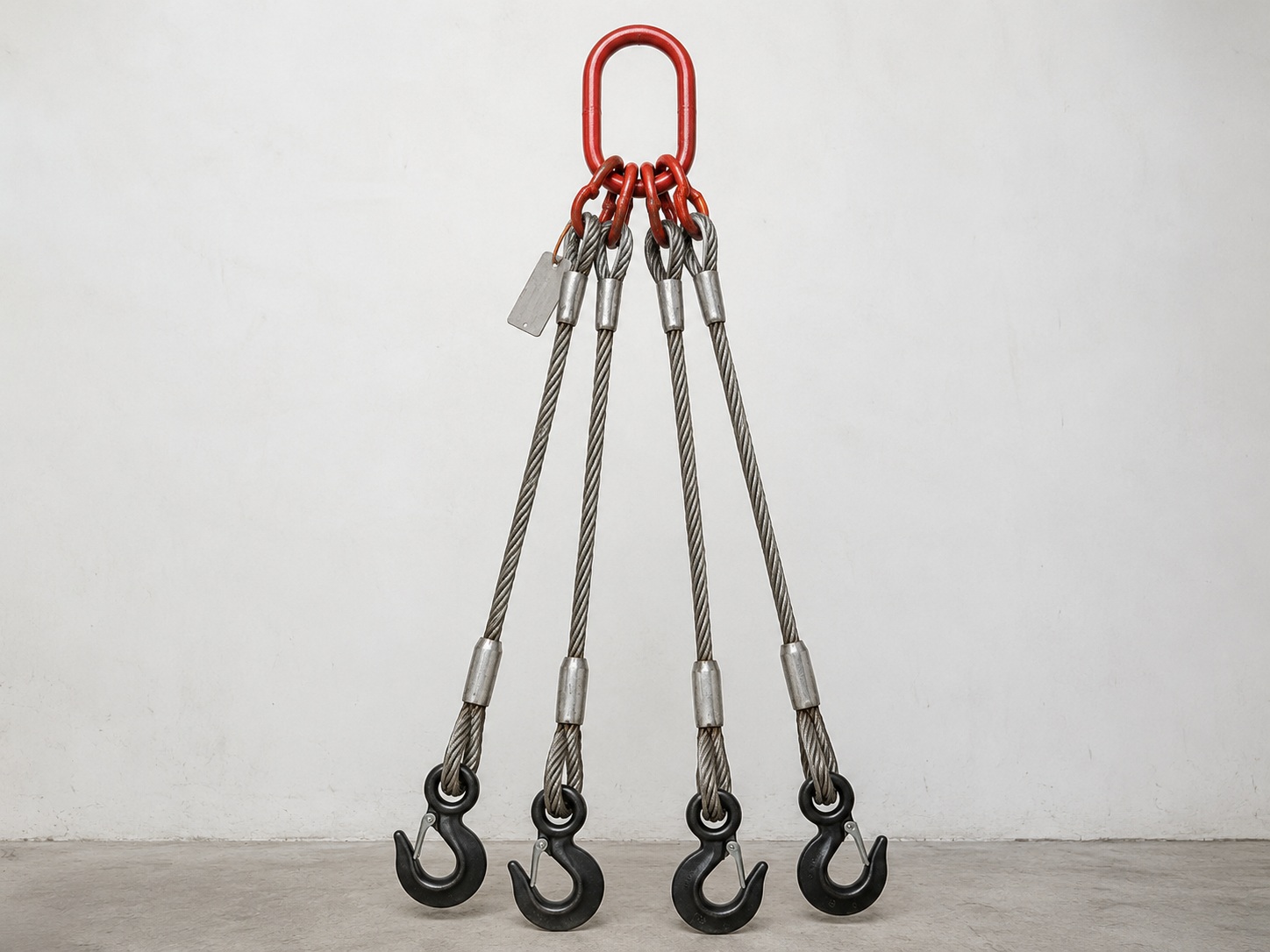

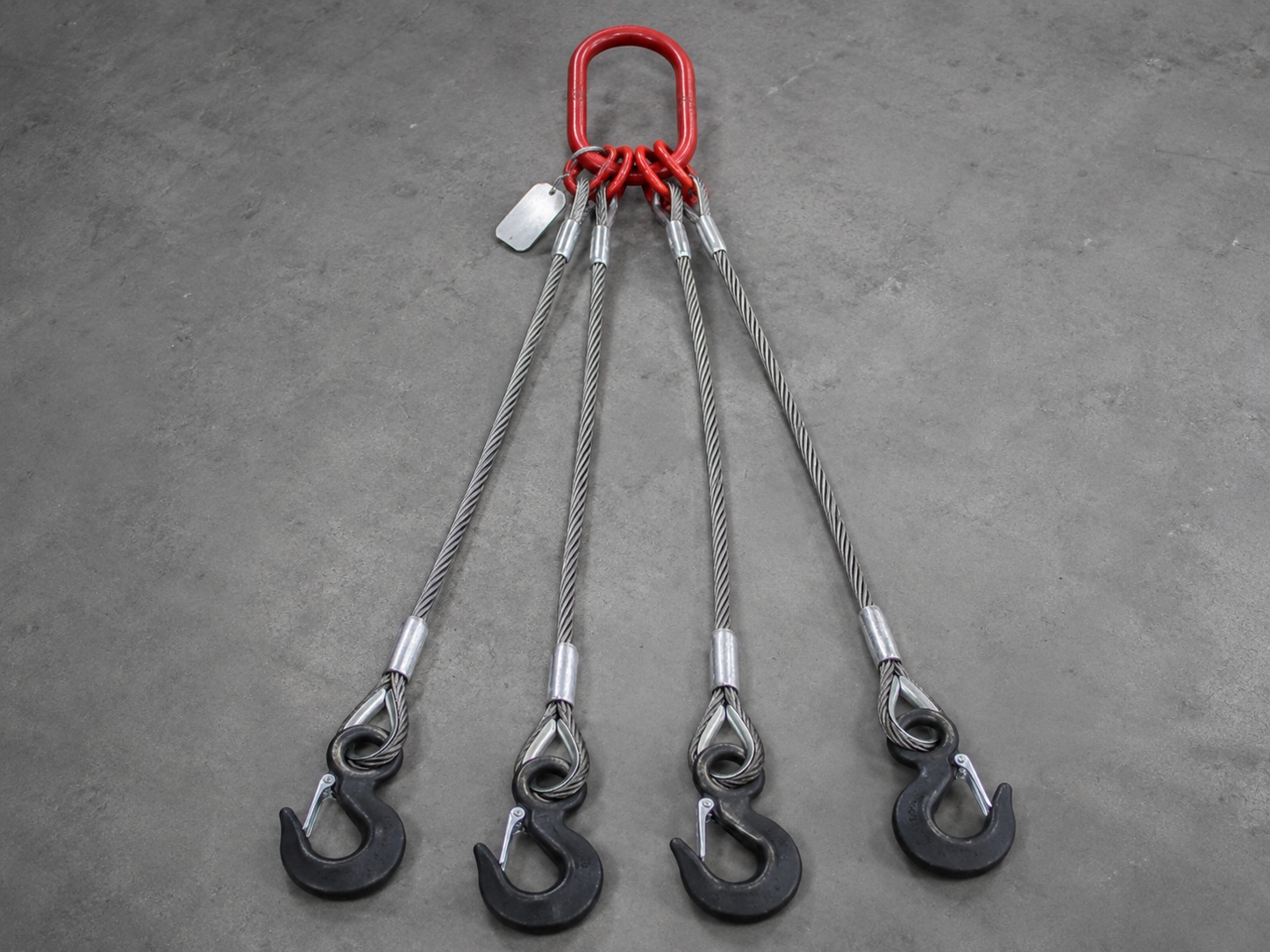

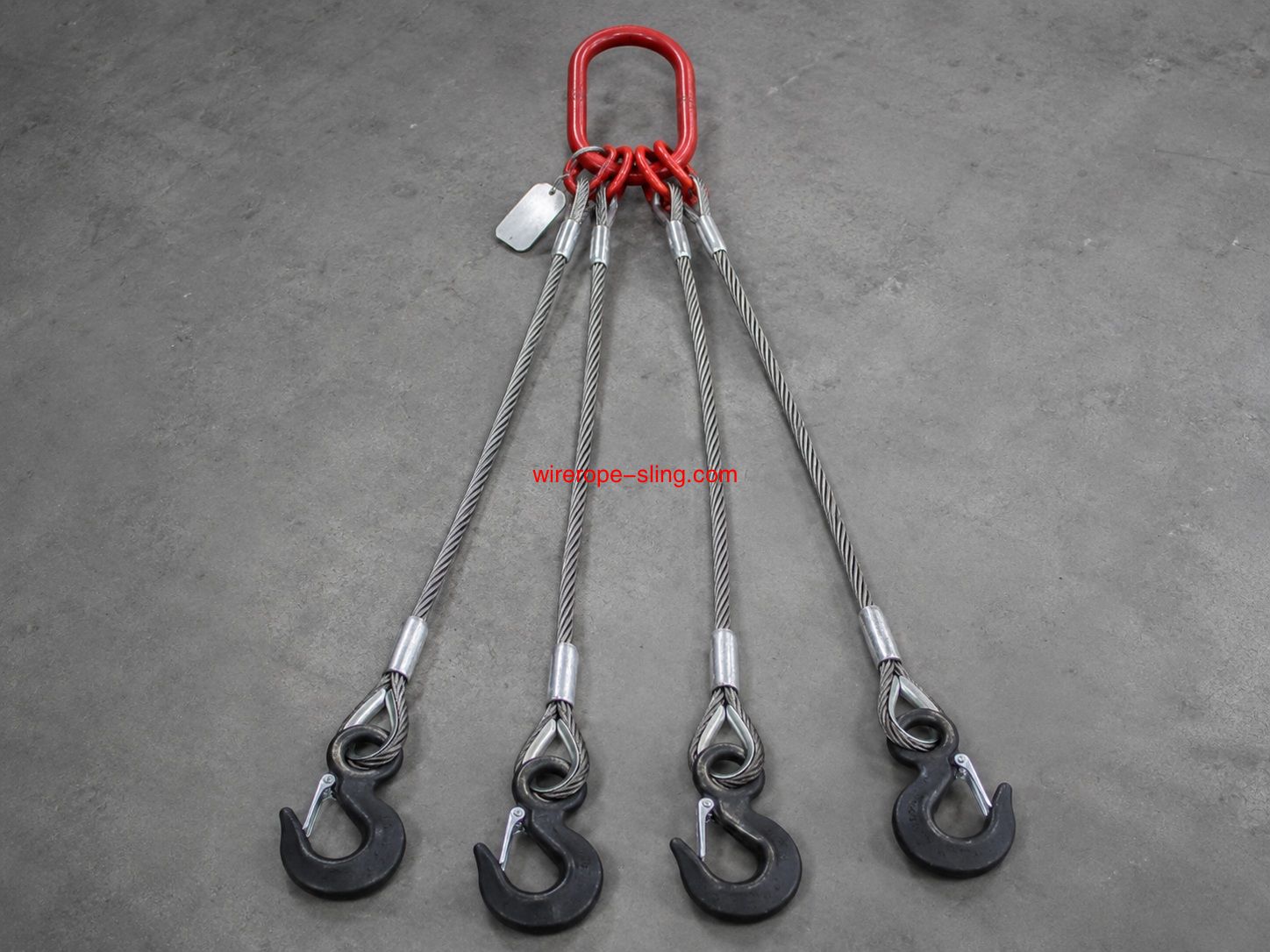

This bridle wire rope sling is built as a complete four-leg lifting assembly. The top master link works as the main crane connection point. Four individual wire rope legs extend from the master link to the load connection points. Each leg can be supplied with hook end fittings, thimble eyes, swaged sleeves and identification tags according to buyer requirements.
| Product Part | Specification | Function for Buyers |
|---|---|---|
| Wire Rope Diameter | 16mm steel wire rope | Provides the sling body for multi-point industrial lifting |
| Leg Length | 3m per leg | Suitable for machinery frames, steel structures and project lifting assemblies |
| Top Connector | Master link or master link assembly | Connects the four-leg bridle sling assembly to the crane hook |
| End Fittings | Four hooks with optional safety latches | Connects each leg quickly to lifting lugs or load points |
| Terminations | Thimble eyes and swaged sleeves | Creates compact and stable sling leg ends |
| Identification | Metal tag with WLL, size, angle range, batch or buyer-required marking | Supports warehouse control, jobsite identification and repeat orders |
The following technical parameters are prepared for buyers who need a clear product specification before quotation. LKS can manufacture this 16mm x 3m four-leg bridle sling as a standard project configuration or adjust the details according to the buyer’s drawing, old sling sample, lifting point layout or jobsite requirement.
| Parameter | Standard Specification | Custom Option / Note |
|---|---|---|
| Product Name | 4 Leg Bridle Wire Rope Sling 16mm x 3m WLL 6.90T/4.93T | Custom bridle wire rope sling available |
| Brand | LKS | OEM marking or buyer tag available on request |
| Wire Rope Diameter | 16mm | Other diameters available according to lifting requirement |
| Leg Length | 3m per leg | Equal or unequal leg lengths can be customized |
| WLL at 0°–45° to Vertical | 6.90T | Suitable for normal symmetrical multi-leg direct lifting angle range |
| WLL at 45°–60° to Vertical | 4.93T | Reduced WLL for larger sling angles |
| Reference Breaking Load | Minimum 16.45T / 161.3kN | Calculated by single-leg WLL × safety factor 5; final value subject to certificate |
| Wire Rope Construction | 6x36WS IWRC 1960 N/mm² | 6x19, 6x37, 7x19 or buyer-specified construction available |
| Surface Finish | Galvanized steel wire rope | Bright steel or stainless steel wire rope available |
| Standard Reference | EN 13414-1-oriented / GB/T 16762 reference | Final compliance depends on confirmed order, testing and documentation |
A bridle wire rope sling does not carry the same rated load at every angle. When the sling legs move farther away from the vertical line, the force in each leg increases. This is why the same 16mm x 3m bridle sling is rated at 6.90T for 0°–45° to vertical, but reduced to 4.93T for 45°–60° to vertical.
For procurement teams, this angle-based rating helps avoid selecting a sling only by rope diameter. A correct inquiry should include load weight, lifting angle, lifting point distance, master link size, hook type and required WLL marking on the metal tag.
| Buyer Requirement | How This Product Helps | Purchasing Value |
|---|---|---|
| Four lifting points | Four 16mm wire rope legs connect to four load points | Better fit for frames, modules, bases and fabricated components |
| Clear WLL by angle | 6.90T and 4.93T ratings are shown according to angle range | Helps buyers select more responsibly for actual lifting conditions |
| Crane hook connection | Top master link gathers four legs into one lifting point | Simplifies rigging setup and crane connection |
| Fast load attachment | Four hook ends connect quickly to lifting lugs or load points | Reduces loose hardware preparation on site |
| Jobsite identification | Metal tag can show size, WLL, angle range, batch or buyer-required marking | Supports receiving inspection and warehouse control |

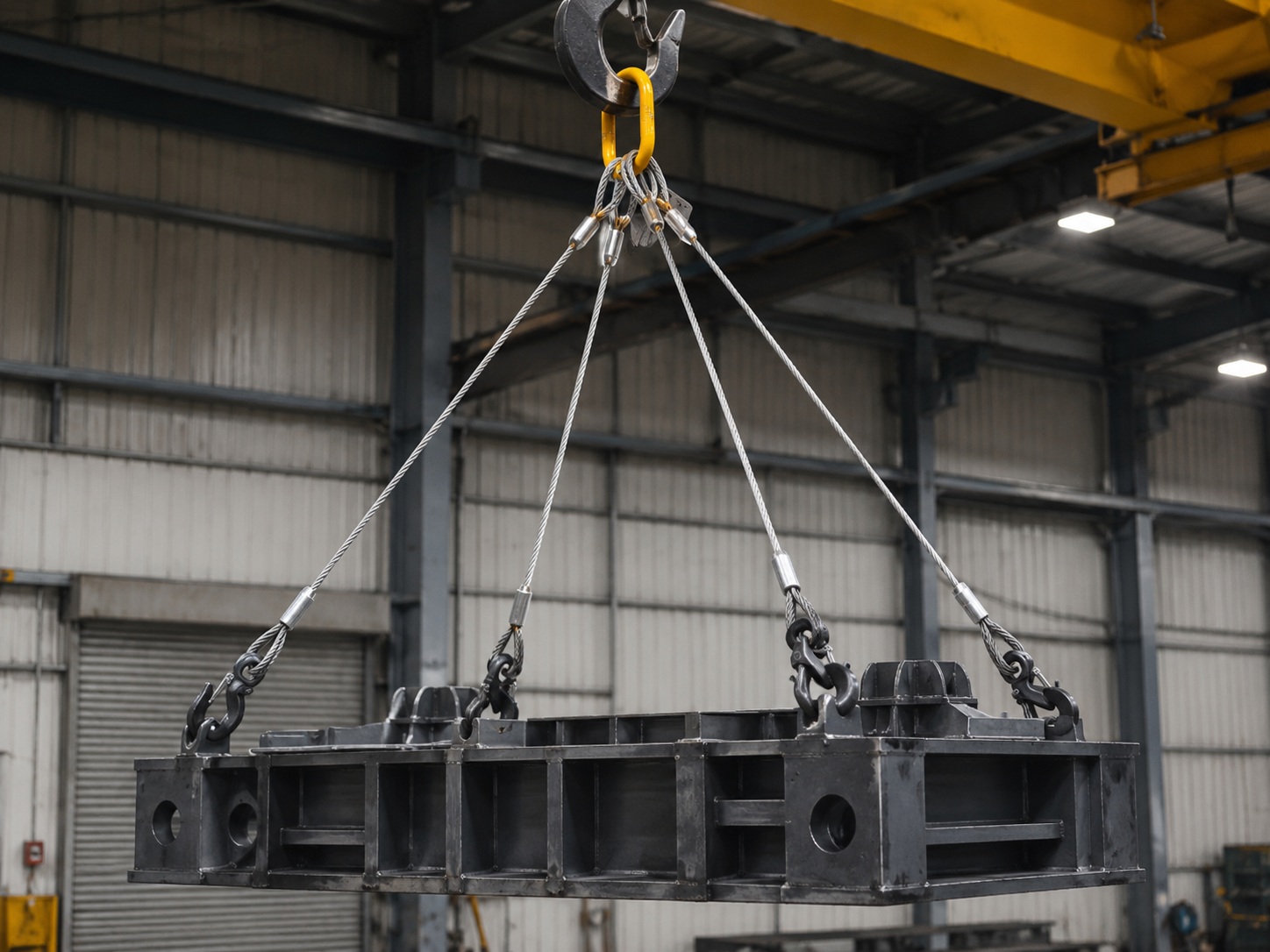

This specific bridle wire rope sling configuration is suitable for many industrial lifting tasks where multi-point connection is required. Buyers can use the table below to match the product with common project scenarios.
| Application Scenario | Typical Load | Why 16mm x 3m Bridle Sling Works |
|---|---|---|
| Machinery Frame Lifting | Machine bases, motors, molds and fabricated equipment | Four hooks connect to lifting lugs and the 3m legs provide practical lifting reach |
| Steel Structure Handling | Steel beams, frames, columns and welded structures | Four-leg layout supports balanced connection to multiple lifting points |
| Construction Module Lifting | Precast components, pipe racks, platforms and site modules | Master link and hooks reduce assembly time during crane lifting |
| Marine and Workshop Use | Deck equipment, repair parts and marine machinery | Galvanized rope, thimble eyes and metal tags support practical working environments |
| Industrial Rigging Supply | Distributor stock, project supply and repeat lifting assemblies | Specific 16mm x 3m configuration is easy to quote, reorder and customize |
Specification Reminder: For accurate quotation, buyers should confirm the load weight, lifting angle, four lifting point positions, master link size, hook type, WLL requirement, tag content and packing method. |

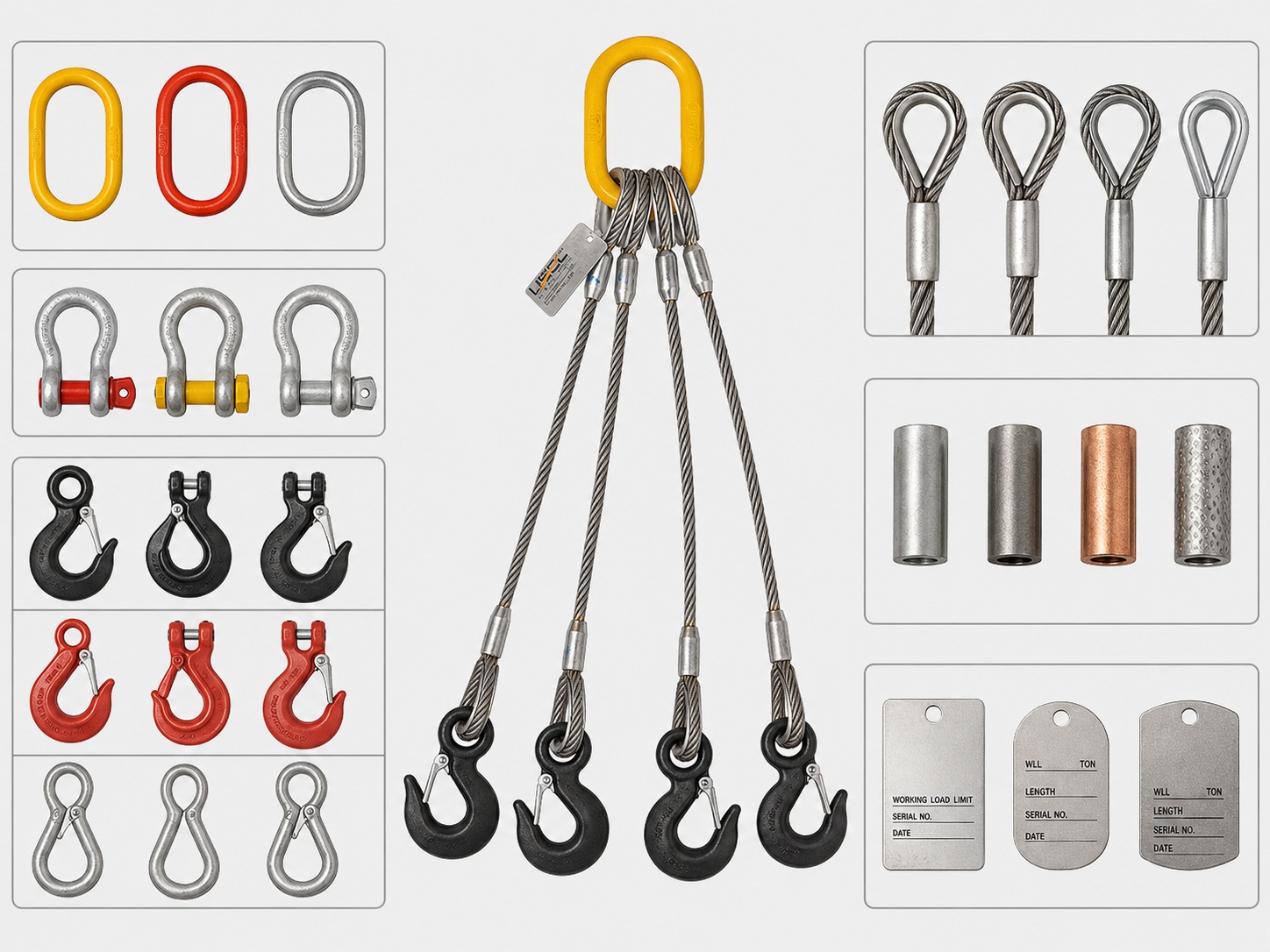

Although this page focuses on the 16mm x 3m specification, LKS can adjust the bridle sling according to buyer drawings and project requirements. Buyers can change the wire rope diameter, leg length, hook type, master link size, surface finish, sleeve type, tag content and test requirement.
| Custom Item | Available Options | Buyer Benefit |
|---|---|---|
| Rope Diameter | 16mm standard on this page; other diameters available | Match different load requirements and project standards |
| Leg Length | 3m standard on this page; custom length available | Fit different lifting heights and load dimensions |
| Top Link | Master link, oblong master link or master link assembly | Match crane hook and rigging system |
| Hook Type | Eye hook, safety hook, clevis hook or buyer-specified hook | Improve compatibility with lifting lugs and load points |
| Tag and Marking | Metal tag, batch number, WLL, angle range, serial number or buyer logo | Support inventory control, project files and distributor resale |

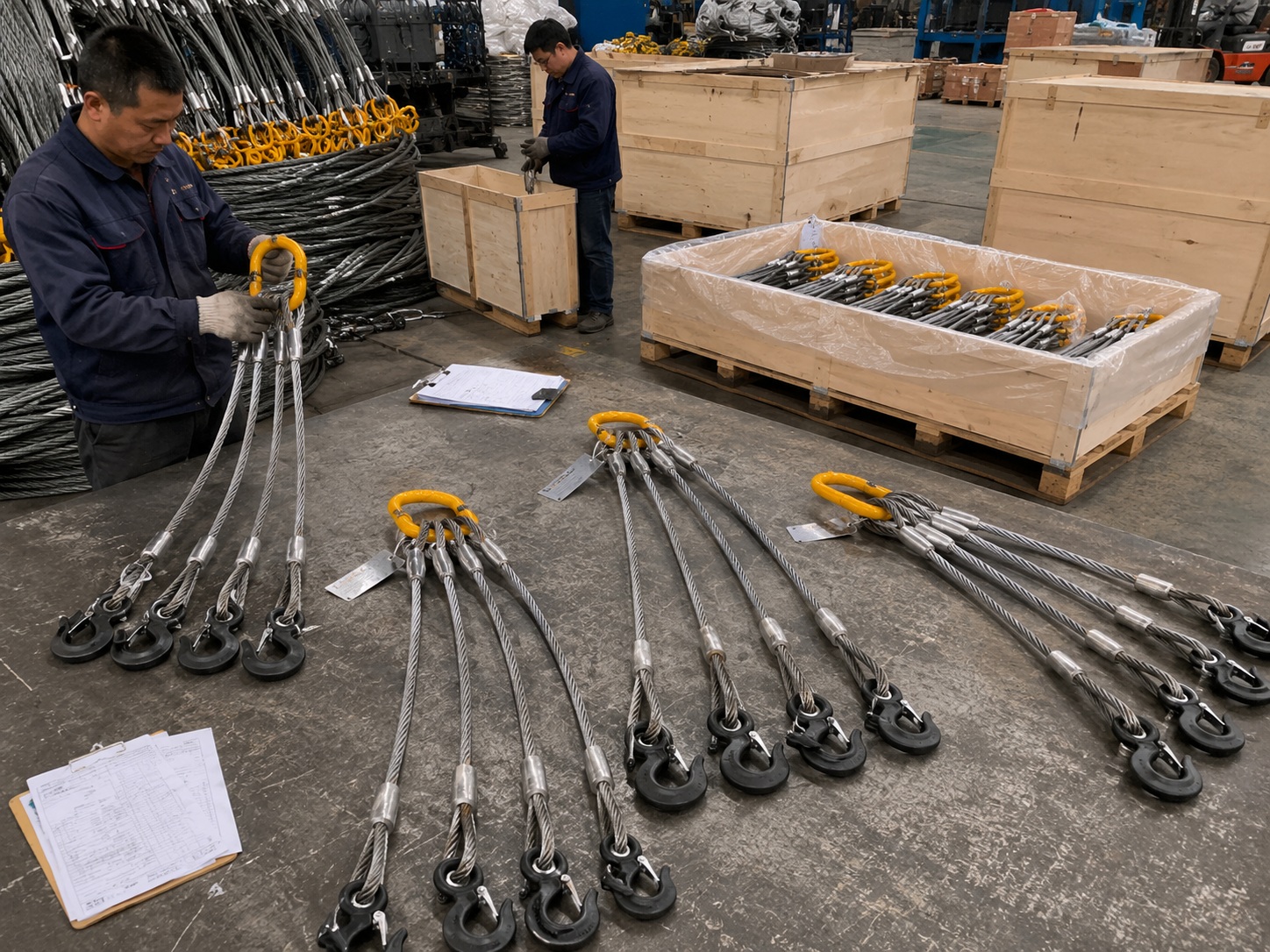

LKS understands that buyers of bridle lifting slings often need a complete product with clear identification and reliable packing. Before shipment, the sling structure, leg length, swaged sleeves, thimble eyes, master link, hooks, WLL marking and tag information can be checked according to the confirmed order details.
| Quality Item | Available Support | Buyer Benefit |
|---|---|---|
| Dimension Check | Check 16mm rope diameter and 3m leg length before packing | Helps buyers receive the correct product specification |
| Fitting Confirmation | Confirm master link, hooks, thimble eyes and swaged sleeves | Reduces connection mismatch after delivery |
| Metal Tag | Size, batch number, WLL, angle range, serial number or buyer-required marking | Supports jobsite identification and warehouse control |
| Proof Test Option | Proof test and test report can be discussed before production | Useful for project procurement and serious lifting buyers |
| Export Packing | Carton, pallet, wooden case, steel frame or custom packing | Protects bridle sling assemblies during international shipment |
For faster quotation, buyers can start with the standard product specification on this page: bridle wire rope sling, 16mm rope diameter, 3m leg length, WLL 6.90T at 0°–45° and WLL 4.93T at 45°–60°, top master link and four hook ends. If the lifting setup is different, send drawings, load photos, old sling tags or lifting point dimensions to LKS for customization.
| Inquiry Information | Recommended Details | Why It Helps |
|---|---|---|
| Product Specification | 4 leg bridle wire rope sling, 16mm diameter, 3m leg length | Confirms the core product model quickly |
| Load and Angle | Load weight, lifting angle, lifting point distance and required WLL | Helps confirm whether 6.90T or 4.93T rating applies |
| Fitting Requirement | Master link size, hook type, shackle size or safety latch need | Improves connection compatibility |
| Tag and Test Need | Metal tag content, WLL marking, proof test request or inspection document | Supports project documentation and receiving inspection |
| Packing and Quantity | Sample order, batch order, carton, pallet, wooden case or export packing | Helps arrange production and shipping efficiently |
LKS focuses on custom wire rope sling manufacturing for B2B lifting buyers. This 4 Leg Bridle Wire Rope Sling 16mm x 3m gives buyers a clear starting specification with angle-based WLL values, while still allowing customization for rope diameter, leg length, fittings, tag content, proof test and packing.
| Specific 16mm x 3m Product Clear rope diameter, leg length and WLL values make quotation, comparison and repeat ordering easier. | Angle-Based WLL Information 6.90T and 4.93T load ratings help buyers understand capacity changes by lifting angle. |
| Custom Fitting Support Hooks, shackles, thimble eyes, master links and tags can be adjusted by project need. | Inspection and Export Packing Inspection records, proof test options and export packing can be arranged for B2B orders. |
This 4 leg bridle wire rope sling has a rated WLL of 6.90T at 0°–45° to vertical and 4.93T at 45°–60° to vertical, based on symmetrical multi-leg direct lifting.
The reference breaking load is minimum 16.45T / 161.3kN, calculated from the single-leg reference WLL 3.29T multiplied by safety factor 5. Final breaking load and proof test information should follow the confirmed inspection document.
Yes. LKS can customize rope diameter, leg length, wire rope construction, master link size, hook type, surface finish, metal tag, WLL marking and packing method according to buyer requirements.
Buyers should provide rope diameter, leg length, load weight, lifting angle, lifting point layout, hook type, master link requirement, required WLL, quantity, destination and any proof test or documentation needs.
Need Bridle Wire Rope Sling 16mm x 3m WLL 6.90T/4.93T?Send your required quantity, load photo, lifting angle, hook type, master link size or proof test request to LKS. Our team can quote this 16mm x 3m bridle sling or customize another bridle wire rope sling according to your working load and project requirements. |
